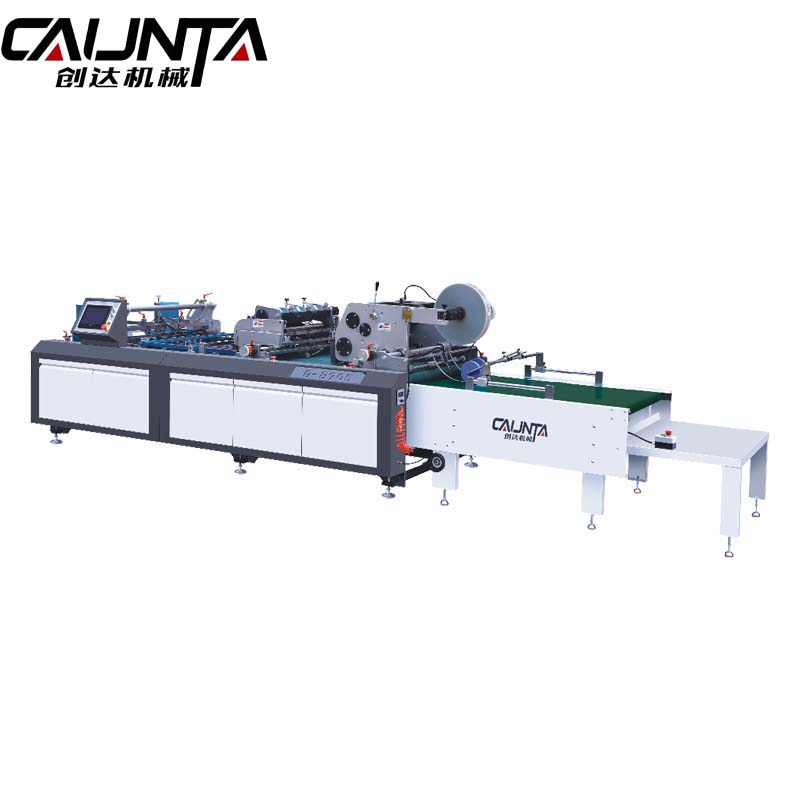

G-1100S Full-automatic High-speed Window Patching Machine

Short Description:

Product Detail

Product Tags



 Max.Paper Size W1100xL800mm
 Min.Paper Size 110X110mm
Paper Weight Kraft Paper:150-1200g/m2White Cardboard:230-1200g/m2
   Corrugated Paper:≤3mm
 Max.Film Size W450xL430mm
Min.Film Size W30xL65mm
Max.Film Unwinding Diameter  450mm
Film Thickness CPE/PE:0.1-0.2mmPVC:0.08-0.2mm  APET/PET:0.06-0.2mm
Film Precision ±2mm
Maximum Speed Paper L360mm:30000pcs/h
Paper L>360mm:15000pcs/h
Quantity of Servo Motor 2Sets
Driving part:Paper feeding department 1 set ,film delivery department 1 set
Quantity of Stepping Motor 1 Set
 Driving Parts:  Automatic paper receiving 1 set
 Power 380/415V 50/60Hz  13KW
Overall Dimension L570xW180xH160cm
Wooden case packing (export) Size:L410xW183xH165cm    G.W.:3280kg       N.W.:3050kg
Overall Weight  3050kg

1.Horizontal knife cutting film + Single group film applicator
2.Servo motor paper feeding
3.Servo motor film feeding
4.Paper receiving stepper with batch counting
5.Inflatable shaft with magnetic powder tension and film unwinding
6.Paper vacuum adsorption transport
7.Double sheet / empty sheet gluing rising automatically
8.Follow lable of film printing surface
9.Concave convex patterns can be stamped on the film surface(Need to customize the mold)
10.Round holes can be punched on the surface of the film(Need to customize the mold)


Q1.What about the payment terms?
By T/T 30% deposit in advance, and 70% balance should be paid before delivery(T/T).
Q2.How can I know if it is paid successfully?
We will send you a payment confirmation email upon receiving your payment.
Q3.What's the scope of the machine application?
The  automatic high-speed window patching machine is suitable for the window patching of gift box, tissue box(some modle of machine is OK), toy box, cosmetic box ,cardboard ,corrugated paper etc. It can realize the film cutting, gluing and patching for the packaging products.
Q4.How will be the machine packed?
The machine will be packed with wrapping film and then packed into fumigated wooden case.
Q5.What about the after-sale services?
The warranty period will be one year. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our machine.
Q6.Why choose us?
We are the the leading manufacturer in window patching machine area. We have won the trust from quite a large number of customers through whom we get more new orders because of their recommendation. Our machine quality is always ahead of the curve because of our creative technician & development team and attentive after-sale services.
